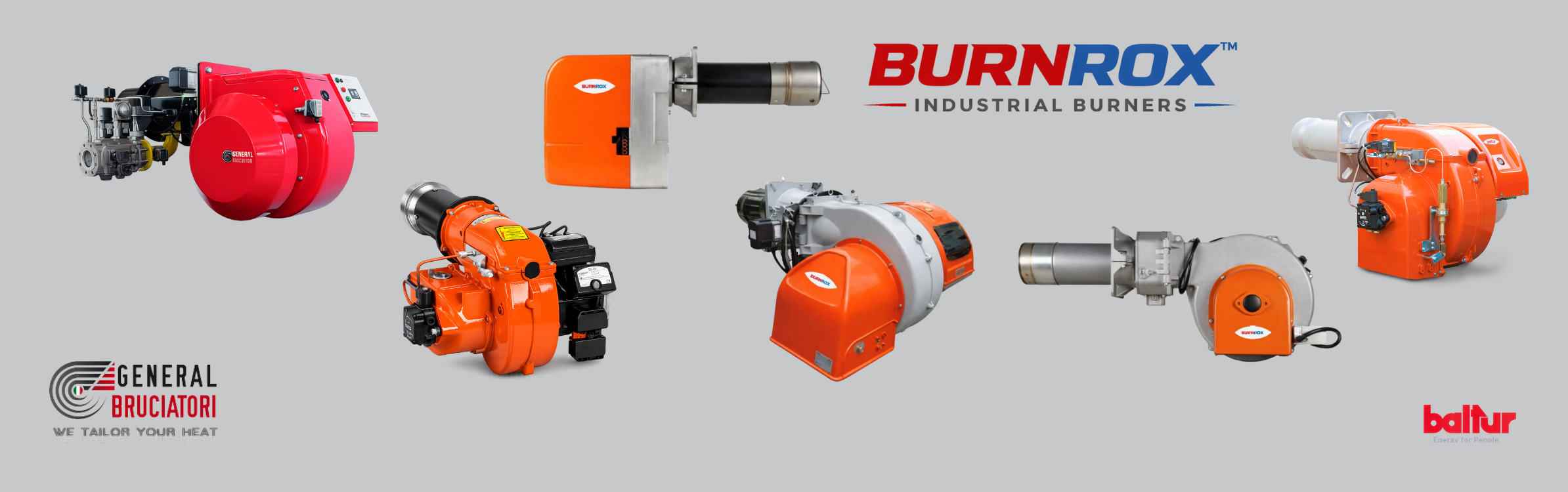

Oil Burners

Baltur’s light oil burners are engineered for efficient combustion of light fuel oils (diesel, kerosene, etc.) in industrial and commercial heat generators. They are designed for low emissions (EN267 compliance), adjustable combustion control, and robust operation to match different boiler capacities and operating conditions.

TBL Series – Single-Stage Light Oil Burners

The TBL series are single-stage light oil burners suitable for basic on/off combustion operation in smaller capacity applications. These burners feature adjustable air flow, combustion head regulation, manual air control, and flame presence detection for reliable performance.

Common example models include:
• BTL 3 – 16.6 kW to 42.7 kW
• BTL 4 – 26 kW to 56.1 kW
• BTL 6 – 31.9 kW to 74.3 kW
• BTL 10 – 60.2 kW to 118 kW
• BTL 14 – 83 kW to 166 kW
• BTL 20 – 118.6 kW to 261 kW
• BTL 26 – 190 kW to 310 kW

BTL-P Series – Two-Stage Light Oil Burners

The BTL P series are two-stage oil burners with stepped fuel output for more efficient combustion in mid-range applications. They include adjustable air flow mechanisms, flame detection, and pump-driven fuel circuits for stable operation.

Representative models include:
• BTL 4 P – approx. 26 kW to 56 kW
• BTL 6 P – approx. 31.9 kW to 74.3 kW
• BTL 10 P – approx. 60 kW to 118 kW
• BTL 14 P – approx. 83 kW to 166 kW
• BTL 20 P – approx. 118 kW to 261 kW
• BTL 26 P – approx. 190 kW to 310 kW

TBL-P Series – Two-Stage Light Oil Burners

The TBL P series are also two-stage light oil burners, often used on larger hot water boilers or steam systems requiring higher output range. These units feature combustion air regulation, adjustable head mounting, and flame safety controls.

Select example models in the TBL P series include:
• TBL 18 P – approx. 90 kW to 210 kW
• TBL 35 P – approx. 170 kW to 370 kW
• TBL 45 P – approx. 160 kW to 450 kW
• TBL 60 P – approx. 250 kW to 600 kW
• TBL 85 P – approx. 200 kW to 850 kW
• TBL 105 P – approx. 320 kW to 1050 kW
• TBL 130 P – approx. 400 kW to 1300 kW
• TBL 160 P – approx. 500 kW to 1600 kW
• TBL 210 P – approx. 800 kW to 2100 kW
• TBL 260 P – approx. 950 kW to 2600 kW

TBL ME Series – Progressive / Modulating Light Oil Burners

The TBL ME series are advanced two-stage or modulating light oil burners with electronic or progressive control for tighter matching of heat output to load. These are typically used in larger or variable-demand applications.

Sample models include:
• TBL 1000 ME – approx. 2050 kW to 10,500 kW
• TBL 1200 ME – approx. 800 kW to 2100 kW

These burners allow continuous modulation when paired with proportional controllers and PID control systems for higher efficiency.

General Features Across Light Oil Series

Baltur’s light oil burners typically include:
• Low NOx and low CO emissions meeting EN267 standards for light oil combustion.
• Combustion air and head regulation to adapt to different boiler interfaces.
• Adjustable air flow (manual or with servomotor) depending on series.
• Flame presence control for safe operation (phototransistor or IRD photocell).
• Robust electrical protection and modular components for easier maintenance.
